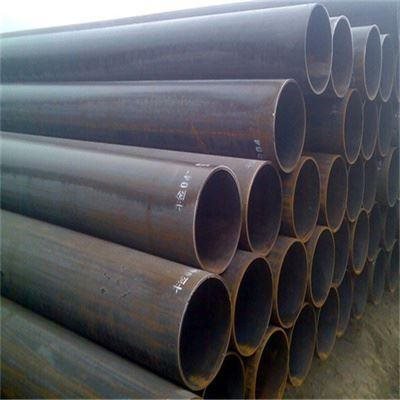

Schedule 40 Black Steel Pipe Specifications
Comparison Table: Schedule 40 vs Schedule 80 Black Steel Pipe Specifications
Nominal Pipe Size (NPS) | Outside Diameter (mm) | Sch. 40 Wall Thickness (mm) | Sch. 40 Weight (kg/m) | Sch. 80 Wall Thickness (mm) | Sch. 80 Weight (kg/m) | Wall Thickness Increase | Brief Application Notes |
1/2 | 21.3 | 2.77 | 1.27 | 3.73 | 1.67 | 34.70 percent | Sch. 80 for high-pressure instrument lines |
3/4 | 26.7 | 2.87 | 1.68 | 3.91 | 2.23 | 36.20 percent | Sch. 40 commonly used in residential plumbing |
1 | 33.4 | 3.38 | 2.5 | 4.55 | 3.32 | 34.60 percent | Sch. 40 typical in industrial piping |
1 ¼ | 42.2 | 3.56 | 3.27 | 4.85 | 4.39 | 36.20 percent | Sch. 80 recommended for high-pressure systems |
1 ½ | 48.3 | 3.68 | 4.06 | 5.08 | 5.49 | 38.00 percent | Sch. 80 preferred in chemical processing |
2 | 60.3 | 3.91 | 5.44 | 5.54 | 7.66 | 41.70 percent | Sch. 80 offers better vibration resistance |
2 ½ | 73 | 5.16 | 8.63 | 7.01 | 11.52 | 35.80 percent | Sch. 80 recommended at pump outlets |
3 | 88.9 | 5.49 | 12.51 | 7.62 | 17.11 | 38.80 percent | Sch. 80 for high-flow, high-pressure lines |
4 | 114.3 | 6.02 | 16.13 | 8.56 | 22.79 | 42.20 percent | Critical choice for main high-pressure lines |
5 | 141.3 | 6.55 | 24.7 | 9.53 | 35.58 | 45.50 percent | Sch. 80 advised for high-temperature steam |
6 | 168.3 | 7.11 | 34.06 | 10.97 | 51.97 | 54.30 percent | Commonly used Sch. 80 in petrochemical plants |
8 | 219.1 | 8.18 | 57.09 | 12.7 | 87.68 | 55.30 percent | Sch. 80 preferred for long-distance transmission |
10 | 273.1 | 9.27 | 88.94 | 15.09 | 142.85 | 62.80 percent | Structural redundancy for high-pressure systems |
12 | 323.9 | 10.31 | 124.13 | 17.48 | 208.04 | 69.50 percent | High safety requirement in large-diameter lines |
Material & Standards:
1.Material: Typically made from carbon steel such as ASTM A53 Grade B, Q235, or equivalent.
2.Standard: Complies with ASME B36.10M, ASTM A53, and API 5L, ensuring global interchangeability and quality control.
3.Manufacturing Process: Commonly produced via ERW (Electric Resistance Welding), offering high efficiency and consistent weld integrity.
4.Surface Condition: "Black" indicates an untreated, uncoated surface with a natural oxide layer; suitable for field painting or galvanizing as needed.
5.End Types: Available with plain ends, threaded ends, or beveled ends for welding.
Key Advantages
1.Cost-Effective Solution: ERW pipes are more economical than seamless alternatives while maintaining strong performance for medium-pressure systems.
2.Wide Availability: Available in various sizes (commonly 1/2" to 12") and lengths (up to 12m), with short lead times from manufacturers.
3.Versatile Applications: Suitable for water, gas, oil, steam, structural support, scaffolding, fencing, and fire protection systems.
4.Reliable Performance: Certified by standards such as UL Listed, FM Approved, ISO 9001, ensuring quality and safety in critical installations.
5.Customization Options: Can be cut, threaded, beveled, or coated to meet specific project requirements.
