Round Pipe-ERW Steel Pipe-ASTM-1.5-2-Galvanized Greenhouse Pipe-Galvanized Steel Pipe
ERW Steel Pipe(Electric Resistance Welded Pipe), A53 ERW Pipe, ERW Carbon Steel Pipe
Sizes:
Out Diameter:1/2"-24"
Wall Thickness: 1.65-20mm
Length : 3-12m, or according to customer's requirement
End : Plain End, Beveled End, Treaded
Standard:
ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217
Steel Grade:
API 5L: PSL1/PSL2 Gr.A, Gr. B, X42, X46, X52, X56, X60, X65, X70
ASTM A53: GR.A, GR. B
EN: S275, S275JR, S355JRH, S355J2H
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555
Uses:
For ERW Line Pipe
For ERW Casing
For ERW Structure Tube
For High pressure and high temperature

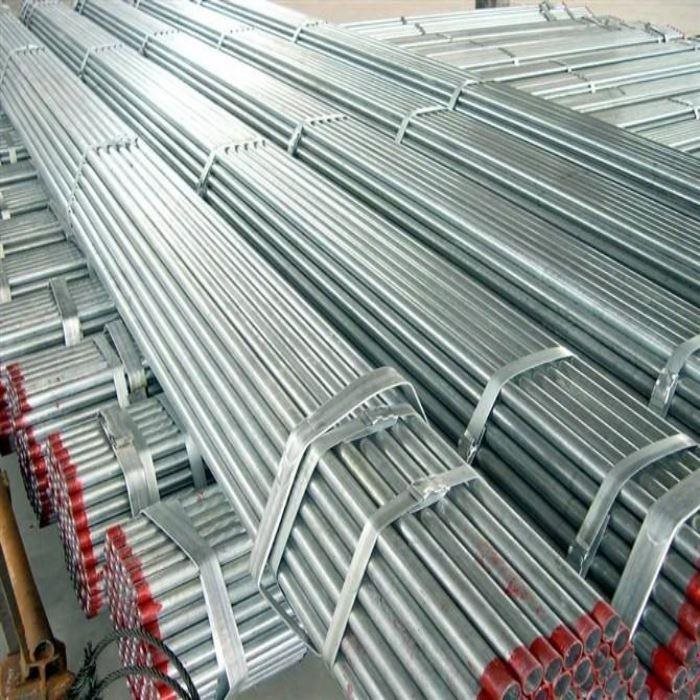

Surface:Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)

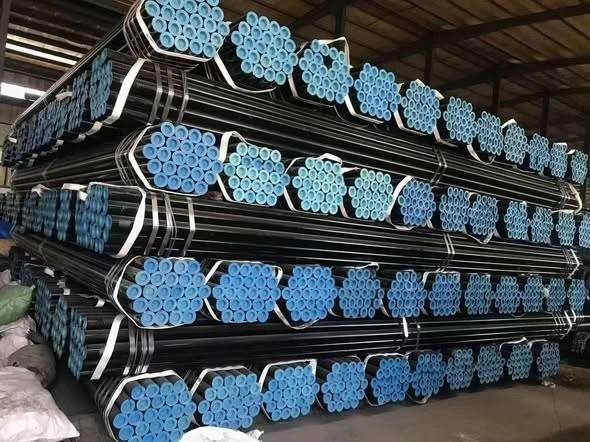

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, RT TEST, UT TEST)
Chemical Composition and Mechanical Properties of ERW Steel Pipe
Standard | Grade | Chemical Composition(max)% | Mechanical Properties(min) | |||||
C | Mn | Si | S | P | Yield Strength (Mpa) | Tensile Strength (Mpa) | ||
GB/T700-2006 | A | 0.22 | 1.4 | 0.35 | 0.050 | 0.045 | 235 | 370 |
B | 0.2 | 1.4 | 0.35 | 0.045 | 0.045 | 235 | 370 | |
C | 0.17 | 1.4 | 0.35 | 0.040 | 0.040 | 235 | 370 | |
D | 0.17 | 1.4 | 0.35 | 0.035 | 0.035 | 235 | 370 | |
GB/T1591-2009 | A | 0.2 | 1.7 | 0.5 | 0.035 | 0.035 | 345 | 470 |
B | 0.2 | 1.7 | 0.5 | 0.030 | 0.030 | 345 | 470 | |
C | 0.2 | 1.7 | 0.5 | 0.030 | 0.030 | 345 | 470 | |
BS En10025 | S235JR | 0.17 | 1.4 | - | 0.035 | 0.035 | 235 | 360 |
S275JR | 0.21 | 1.5 | - | 0.035 | 0.035 | 275 | 410 | |
S355JR | 0.24 | 1.6 | - | 0.035 | 0.035 | 355 | 470 | |
DIN 17100 | ST37-2 | 0.2 | - | - | 0.050 | 0.050 | 225 | 340 |
ST44-2 | 0.21 | - | - | 0.050 | 0.050 | 265 | 410 | |
ST52-3 | 0.2 | 1.6 | 0.55 | 0.040 | 0.040 | 345 | 490 | |
JIS G3101 | SS400 | - | - | - | 0.050 | 0.050 | 235 | 400 |
SS490 | - | - | - | 0.050 | 0.050 | 275 | 490 | |
API 5L PSL1/PSL2 | A | 0.22 | 0.9 | - | 0.03 | 0.03 | 210 | 335 |
B | 0.26 | 1.2 | - | 0.03 | 0.03 | 245 | 415 | |
X42 | 0.26 | 1.3 | - | 0.03 | 0.03 | 290 | 415 | |
X46 | 0.26 | 1.4 | - | 0.03 | 0.03 | 320 | 435 | |
X52 | 0.26 | 1.4 | - | 0.03 | 0.03 | 360 | 460 | |
X56 | 0.26 | 1.1 | - | 0.03 | 0.03 | 390 | 490 | |
X60 | 0.26 | 1.4 | - | 0.03 | 0.03 | 415 | 520 | |
X65 | 0.26 | 1.45 | - | 0.03 | 0.03 | 450 | 535 | |
X70 | 0.26 | 1.65 | - | 0.03 | 0.03 | 585 | 570 | |
