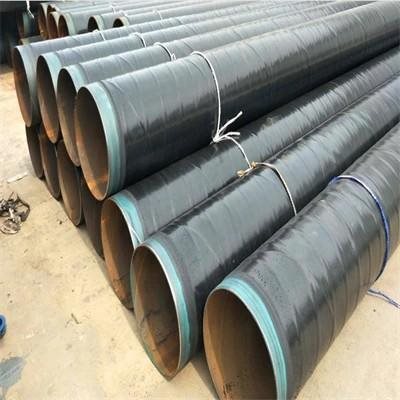

3LPE Coated API 5L LSAW Steel Pipe
3LPE Coated API 5L LSAW Steel Pipe combines the high mechanical strength of LSAW steel pipes with the superior corrosion protection of a Three-Layer Polyethylene (3LPE) coating system compliant with the German standard DIN30670.
Designed for buried or submerged applications, these pipes offer exceptional resistance to mechanical damage, chemical corrosion, and environmental stress. The integration of API 5L specifications ensures that the base steel meets rigorous global standards for line pipe performance, making it an ideal choice for critical infrastructure projects requiring durability and a service life exceeding 50 years
Products Description
Product | 3LPE Coated API 5L LSAW Steel Pipe |
Standard | API 5L PSL1, PSL2 |
Grade | B, X42, X46, X52, X56, X60, X65, X70 |
Manufacturing method | Longitudinal Submerged Arc Welding, JCOE forming |
Range | OD 406~1620mm, Thickness 8~50mm |
Coating | 3LPE per DIN30670 |
Ends | Bevel or Plain |
Applications | Oil/Gas/Water piping line, Stucture, Piling... |

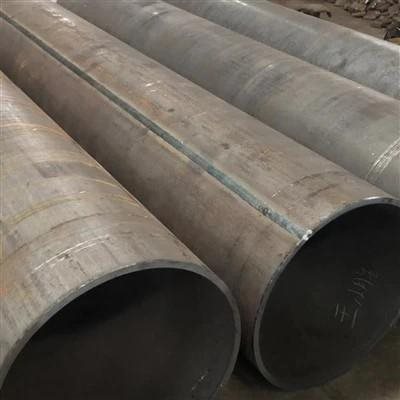

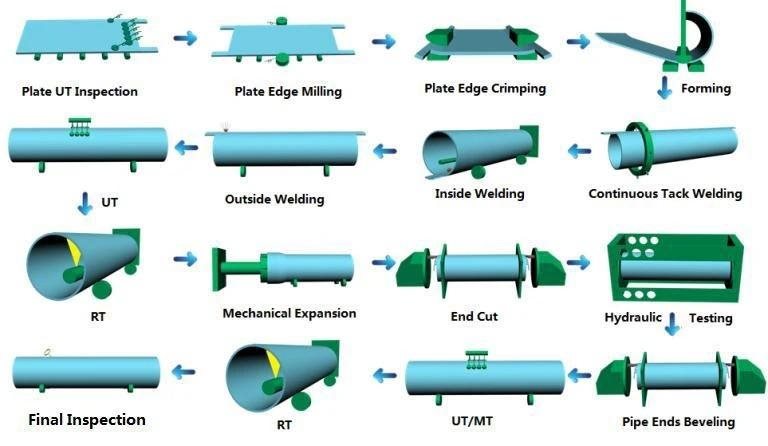

manufacturing for LSAW steel pipe

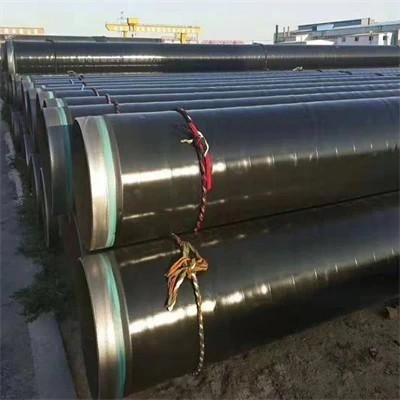

Manufacturing for 3LPE coating
Surface Preparation: Steel pipe surfaces are blasted to Sa2.5 grade to remove rust, oil, and mill scale.
Heating: Pipes are heated via medium-frequency induction to 220-240°C.

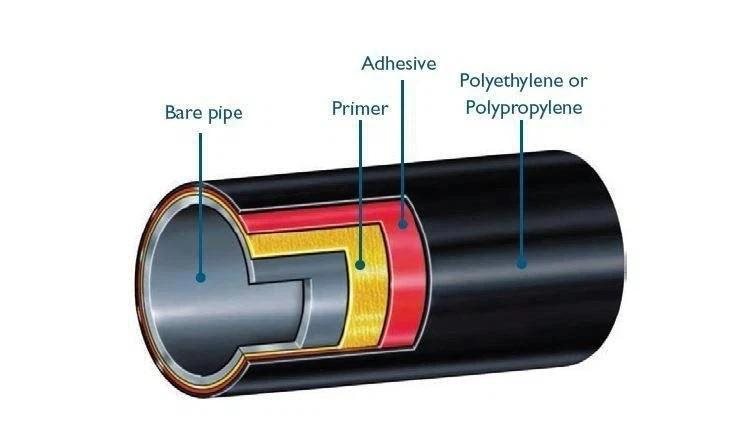

Coating Application:
FBE powder is electrostatically sprayed and fused onto the hot surface.
Copolymer adhesive is extruded over the FBE layer.
HDPE is extruded over the adhesive layer.
Cooling & Inspection: Pipes are water-cooled and subjected to rigorous testing, including holiday detection (spark test), thickness measurement, bend tests, and cathodic disbondment tests.
Applications
3LPE Coated API 5L LSAW Steel Pipe is widely utilized in demanding industrial sectors:
Oil & Gas Transmission: Long-distance pipelines for crude oil, refined products, and natural gas.
Water Infrastructure: Large-diameter water transmission mains, sewage disposal lines, and desalination plant outfalls.
Thermal Power: Heating pipelines and cooling water systems.
Offshore & Onshore Projects: Suitable for both buried land pipelines and submerged offshore installations.
quality control
3LPE Coated API 5L LSAW Steel Pipe undergoes strict quality control per Standard requirements
* Hydrostatic Pressure Testing
* Non-Destructive Testing (X-Ray, Ultrasonic)
* Chemical composition test
* Mechanical Property Testing
* Dimension & Visual Inspection
* Full Traceability (Mill Test Certificates 3.1 provided)
why us
* High quality assured & Fast delivery.
* Rich experiences(23 years) in Technics/Production/Post-sales.
* Technical & full set of documents support (API 5L, ISO, MTC, ITP &MPS .etc)

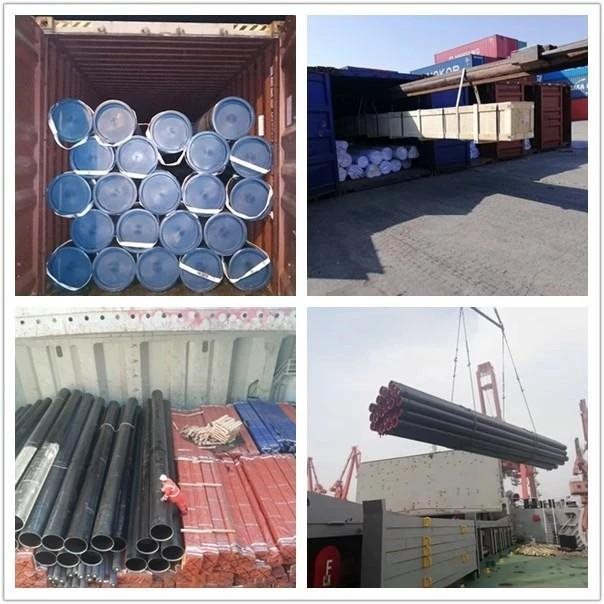

shipment
