ASTM A500 GRB - GRC Square - Rectangular Steel Pipe
High-Strength Structural Tubing for Modern Construction
Key Features
Dual Grades Available
GRB- Good balance of strength & formability for general structures
GRC- Higher strength for heavy loads, seismic zones, and long spans
ASTM A500 Compliance
Strict control over tolerances, straightness, twist, and surface quality.
Cold-Formed & High-Frequency Welded
Precision dimensions, sharp corners, excellent weldability and machinability ..
Typical Applications
Energy & Municipal Engineering
Solar PV mounting systems- support structures for ground-mounted and rooftop solar panels
Power transmission towers- cross arms and web members of lattice towers
Industrial Equipment & Automation
Automated warehouses- uprights and beams for high-bay racking systems
Robotic workstations- robot bases, safety fences, electrical cabinet brackets
Transportation & Agricultural Machinery
Trailers & flatbed trucks- main chassis rails, side beams, cross members
Farm implement structures- seeder frames, trailer chassis, grain dryer supports
Special & Temporary Structures
Mobile staging & lighting trusses- temporary performance trusses, lighting suspension bars
Billboards & signposts- roadside sign supports, directional sign poles
Mechanical Properties (Typical)
Grade | Yield Strength (min) | Tensile Strength (min) |
|---|---|---|
GRB | 315 MPa (45.7 ksi) | 400 MPa (58 ksi) |
GRC | 345 MPa (50 ksi) | 425 MPa (61.6 ksi) |
Refer to latest ASTM A500 for official values.
Available Sizes
Outer diameter:10×10mm up to 600×600mm
Wall thickness: 0.5mm -20mm
Length:6 m / 12 m or custom
Coating:oil, galvanized, coating
Some sizes may vary by grade - contact us for exact availability.
Products advantages
✅Large stockin common dimensions
✅Custom processing- cutting, drilling, bending, sandblasting, painting
✅Full traceability- Mill test certificates (MTC) available
✅Export-ready- seaworthy packing & fast delivery

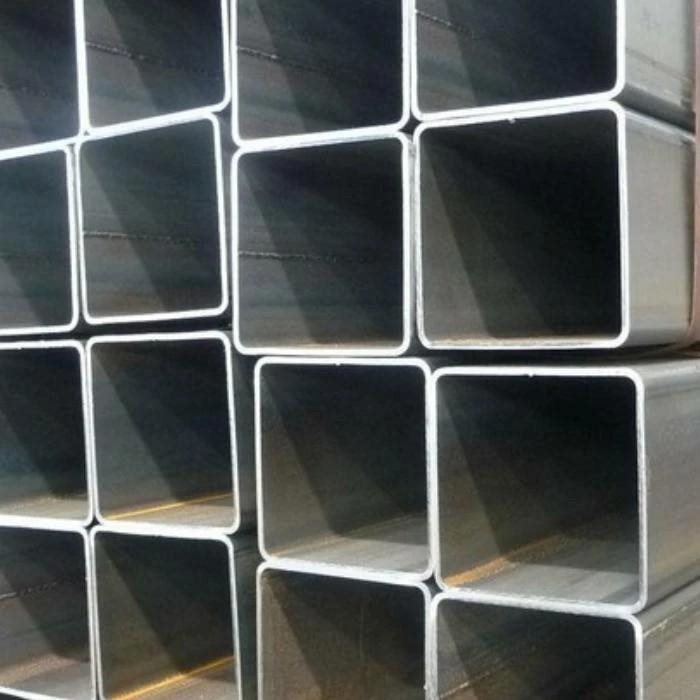

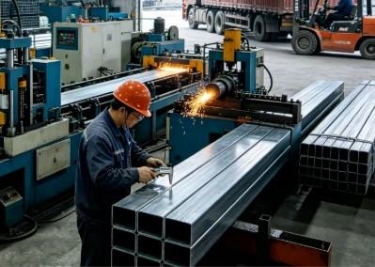

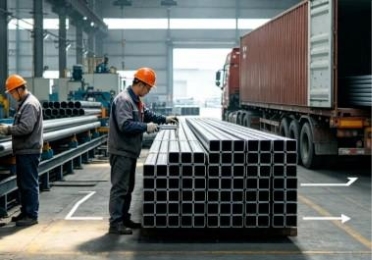

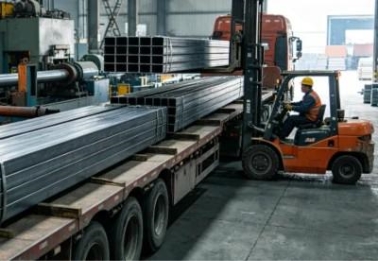

Products pictures
