High-Quality Seamless Steel Pipe Fittings

Product Description

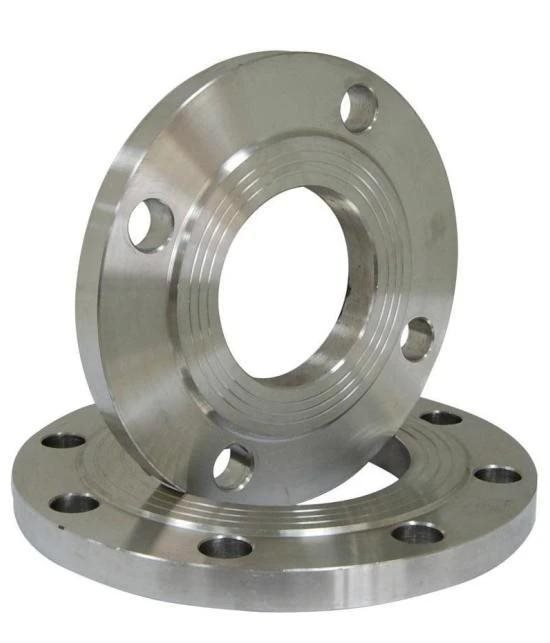

A pipe flange is a disc-shaped piping component used to connect pipes, valves, pumps, and other equipment in a piping system.

Pipe flanges are indispensable in modern piping systems, offering versatility across industries. Proper selection based on pressure, temperature, material, and application ensures long-term reliability. Advances in gasket technology (e.g., spiral wound, RTJ) and smart flange monitoring systems continue to enhance performance in critical services.

1. Types of Flanges

1.1 By Connection Design

Weld Neck Flange (WN)- High-strength, butt-welded for critical applications

Slip-On Flange (SO)- Easy installation, fillet-welded for moderate pressure

Socket Weld Flange (SW)- Compact, for small-bore high-pressure piping

Lap Joint Flange (LJ)- Used with stub ends for easy alignment

Threaded Flange- Screwed onto pipes without welding

Blind Flange- Closes pipe ends for pressure testing or future expansion

1.2 By Facing Type

Flat Face (FF)- For low-pressure applications

Raised Face (RF)- Most common, improves gasket compression

Ring-Type Joint (RTJ)- Metal-to-metal seal for high-pressure/temperature

Tongue & Groove (T&G)- Precision alignment in critical systems

1.3 Specialized Flanges

Orifice Flanges- For flow measurement

Expander/Reducer Flanges- Adjust pipe diameter

Spectacle Blind Flanges- Isolate sections for maintenance

2. Common Materials

Carbon Steel (ASTM A105)- General industrial use

Stainless Steel (ASTM A182 F304/316)- Corrosion resistance

Alloy Steel (ASTM A182 F11/F22)- High-temperature service

Duplex Steel (UNS S31803/S32205)- Chloride environments

Nickel Alloys (Inconel, Monel, Hastelloy)- Extreme corrosion/heat

PVC/FRP- Chemical processing at lower pressures

3. Key Applications

3.1 Oil & Gas Industry

Pipeline connections

Wellhead assemblies

Refinery process piping

3.2 Chemical & Petrochemical Plants

Reactor/vessel connections

Acid/alkali transport systems

3.3 Power Generation

Steam turbine connections

Boiler feedwater systems

3.4 Water & Wastewater Treatment

Pump station piping

Large-diameter water mains

3.5 Shipbuilding & Offshore

Seawater cooling systems

Hydraulic piping

4. Selection & Installation Considerations

4.1 Design Factors

Pressure Rating(e.g., ASME Class 150, 300, 600, 900, 1500, 2500)

Temperature Resistance

Fluid Compatibility(corrosion/erosion risks)

4.2 Installation Best Practices

Proper Gasket Selection(e.g., spiral wound, PTFE, graphite)

Bolt Torque Sequencingto ensure even compression

Alignment Checksto prevent flange warping

Post-Weld Heat Treatment (PWHT)for carbon steel in critical service

5. Standards & Compliance

ASME B16.5- Standard for pipe flanges up to 24"

ASME B16.47- Large-diameter flanges (Series A/ B)

EN 1092-1- European flange standards

6. Maintenance & Inspection

Leak Testing(hydrostatic/pneumatic)

Bolt Retorquingafter initial operation

Corrosion Monitoring(CUI, pitting)

Ultrasonic Testing (UT)for crack detection

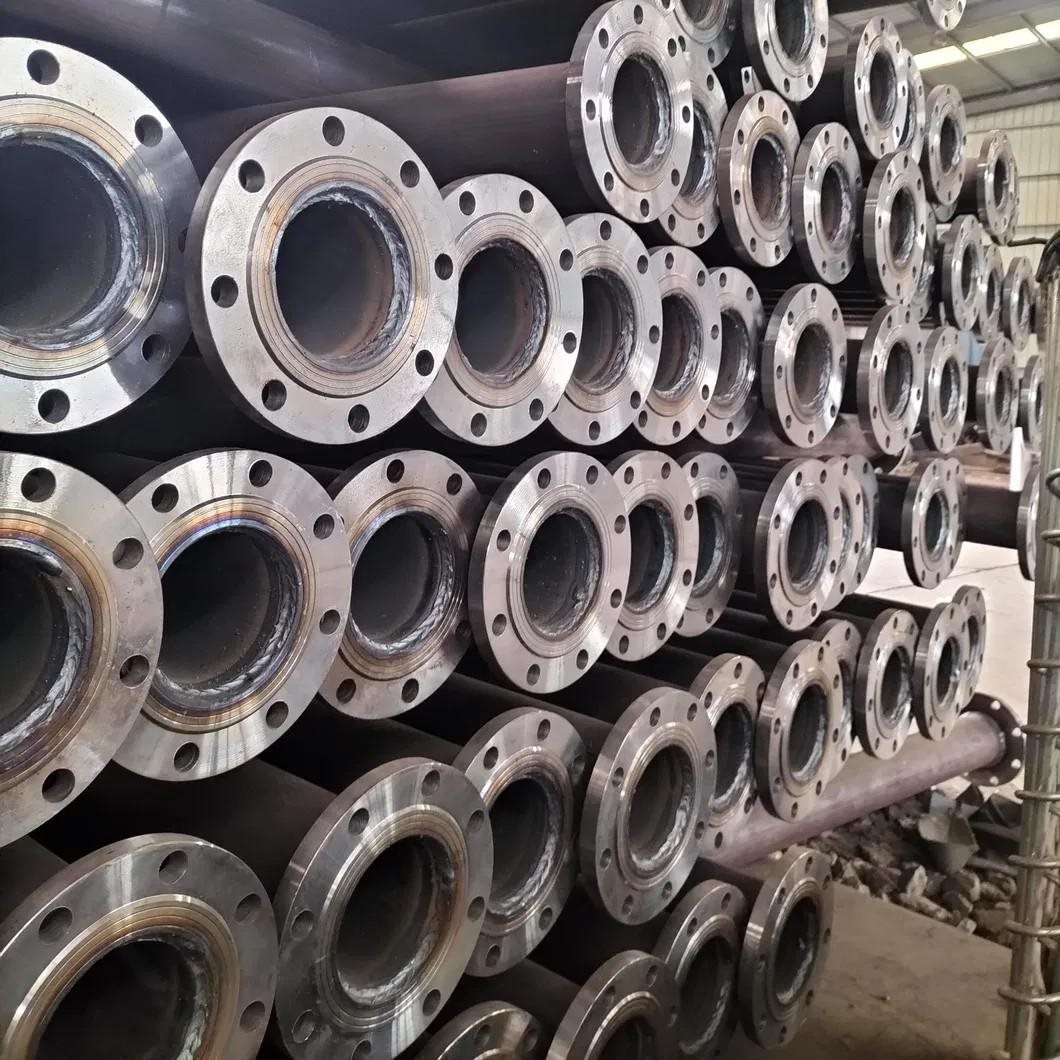

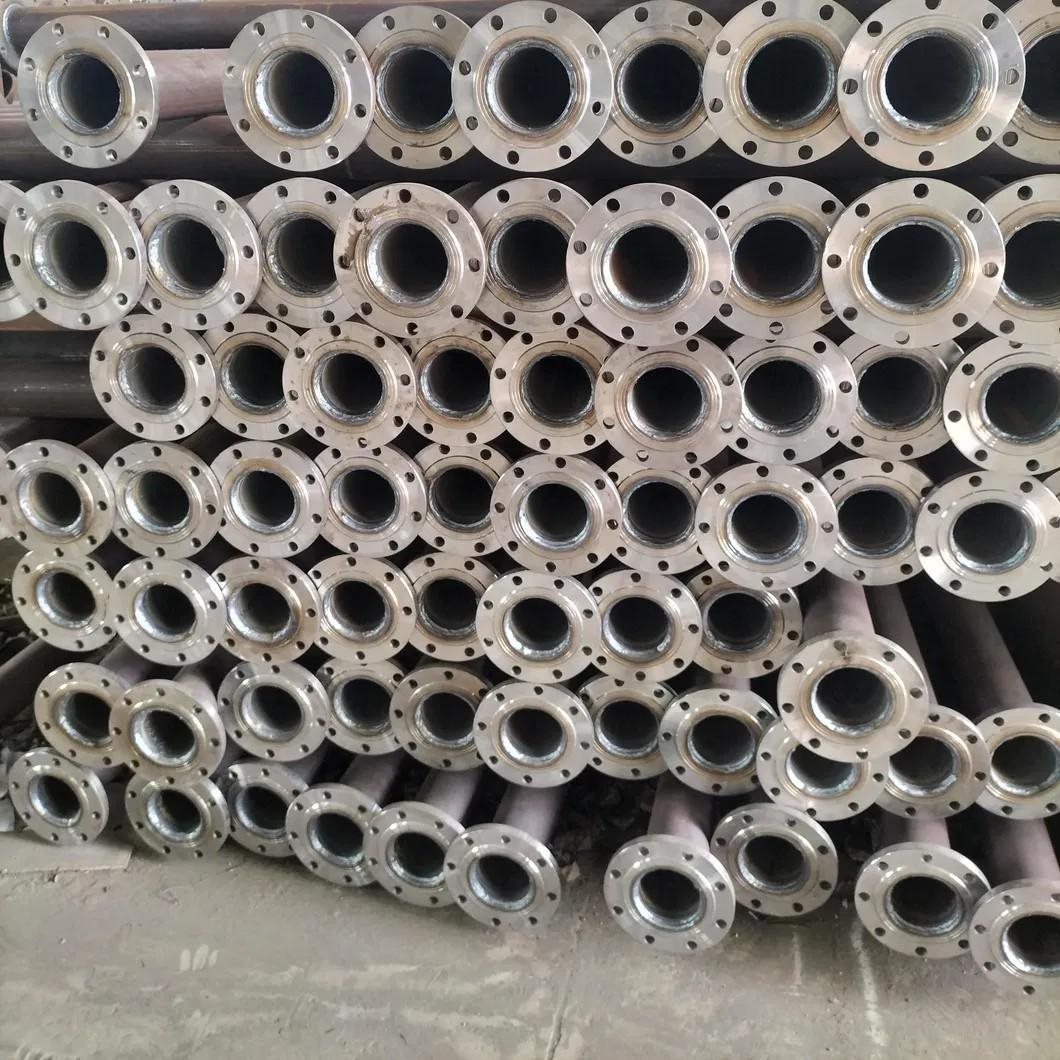

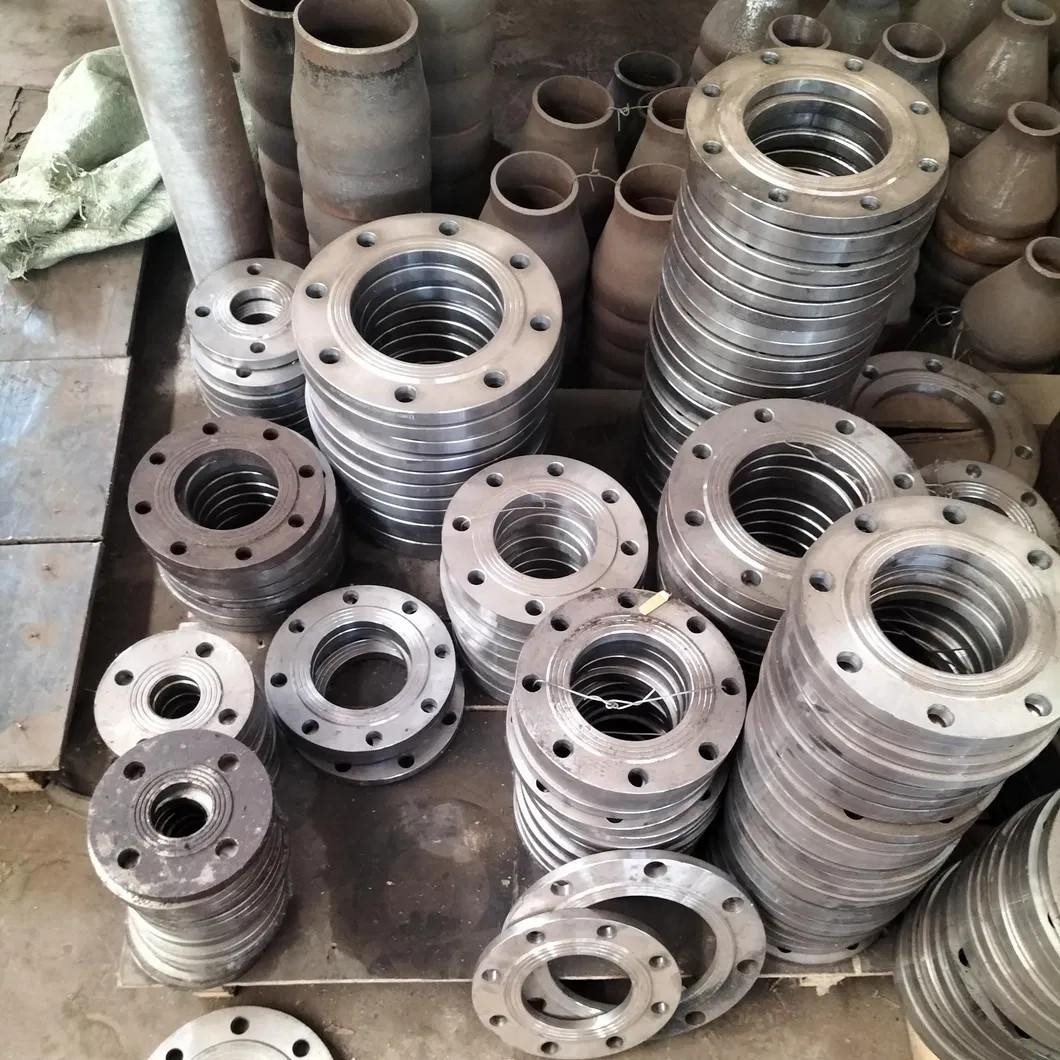

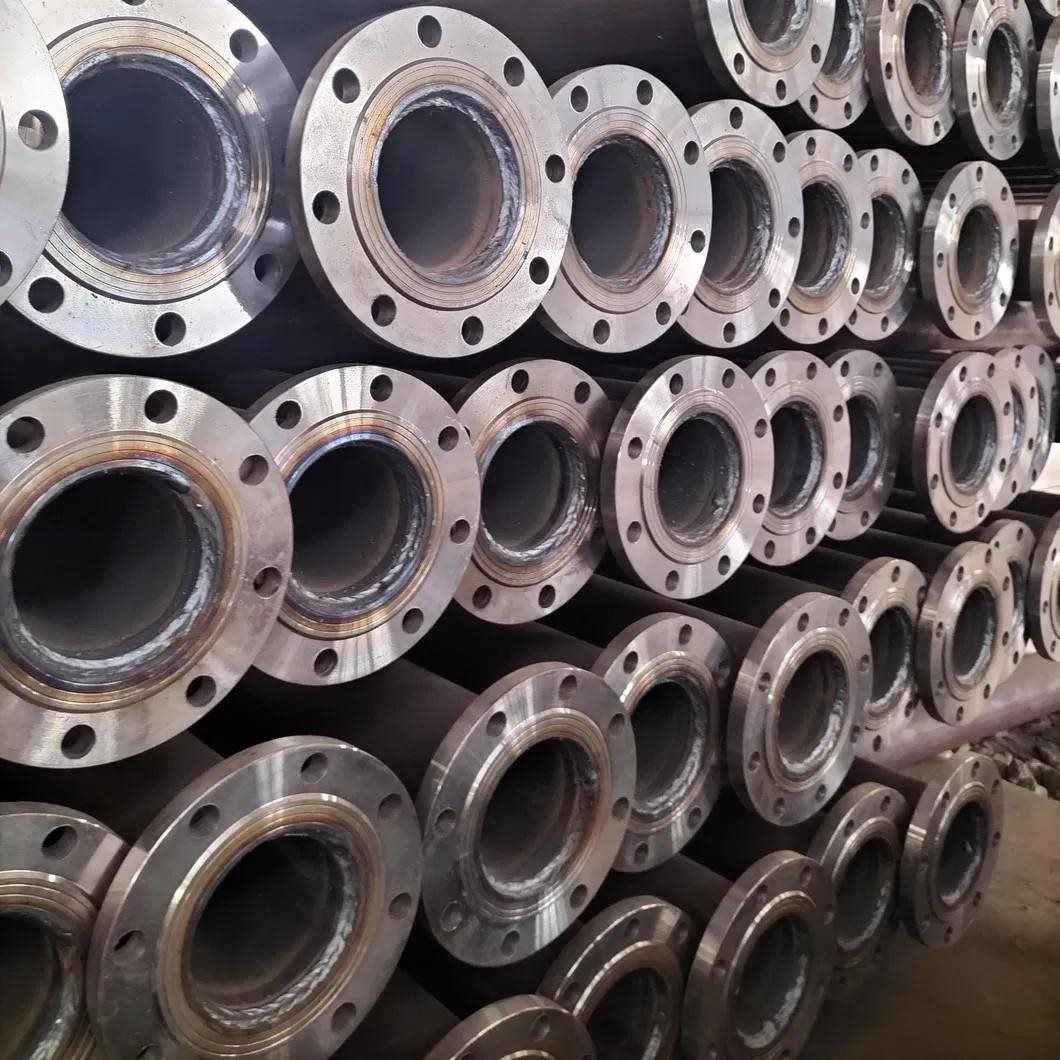

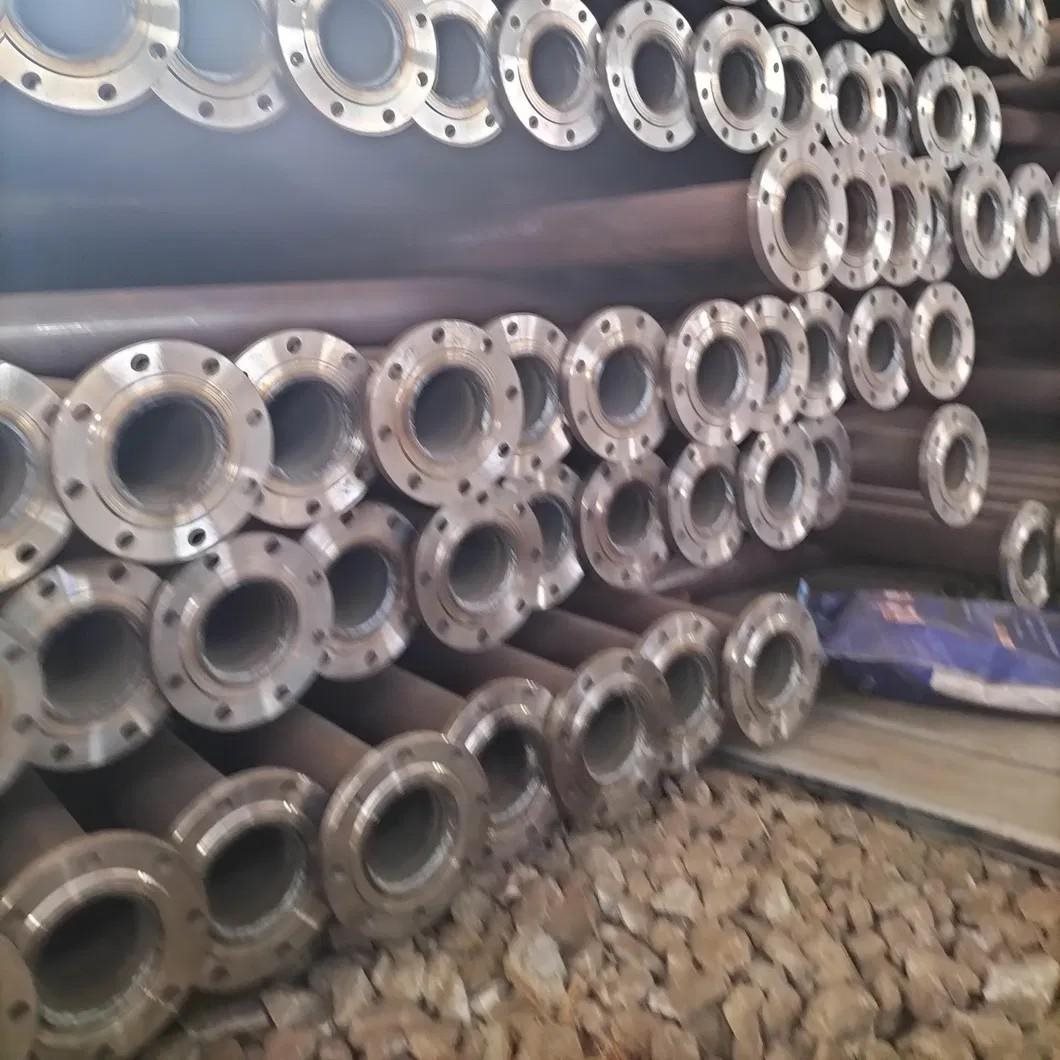

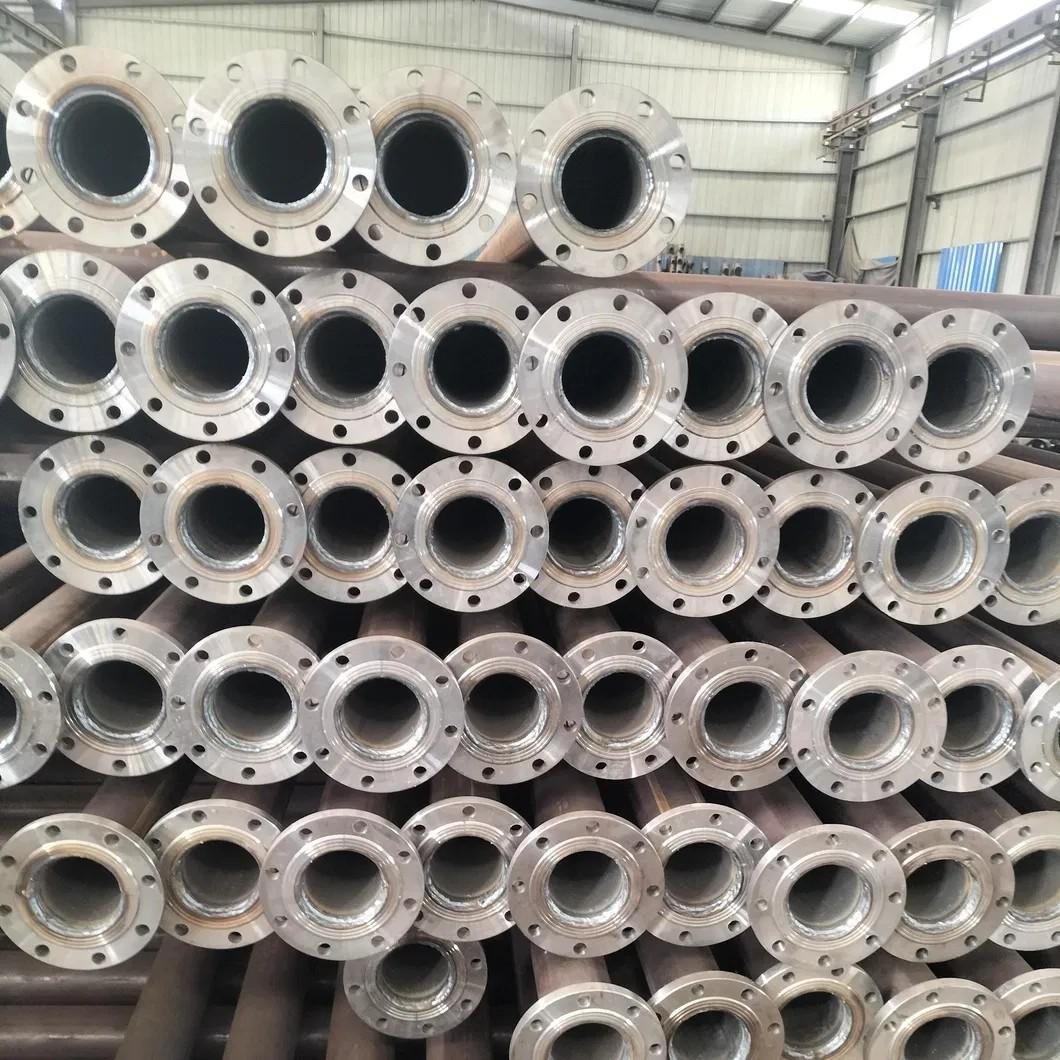

Detailed Photos
