High Corrosion Resistant 316L Seamless Stainless Steel Tube For Chemical Plant
This seamless stainless steel tube is made of premium TP316L low-carbon stainless steel with added molybdenum element, specially engineered for severe corrosive working environments of chemical plants. Produced via hot rolling and cold drawing seamless forming processes, the tube eliminates welding seams to deliver outstanding structural integrity, high pressure bearing capacity and zero leakage risk.
Product Information
Item | Specification |
Product Name | High Corrosion Resistant 316L Seamless Stainless Steel Tube for Chemical Plant |
Material | ASTM A312 TP316L / A269 TP316L / A213 TP316L |
Standard | ASTM A312, ASTM A269, ASTM A213, ASME B31.3 |
Type | Seamless Cold Drawn / Seamless Hot Rolled |
Section Shape | Round |
Surface Finish | Pickled & Passivated, Bright Annealed, Polished (2B/BA/Matte) |
Chemical Composition
Element | C | Si | Mn | P | S | Cr | Ni | Mo |
Value | ≤ 0.030 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | 16.00-18.50 | 10.00-14.00 | 2.00-3.00 |
Mechanical Properties
Item | Tensile Strength | Yield Strength | Elongation | Hardness | Working Temp |
Value | ≥515 MPa | ≥205 MPa | ≥ 40% | ≤95 HRB | -196°C to 650°C |
Key Dimensions Range
Item | Outer Diameter (OD) | Wall Thickness (WT) | Length | Schedule |
Range | 3 mm-610mm | 0.5 mm-50mm | Fixed length / Random length / Custom | Sch5, Sch10, Sch40, Sch80, Sch160, XXS |
Advantages
Advantage | Details |
Ultra-High Corrosion Resistance | Molybdenum (2.0-3.0%) enhances pitting/crevice corrosion resistance; PREN ~24-28; ideal for chloride & acidic chemical media |
Low Carbon Anti-Intergranular Corrosion | C ≤0.03% minimizes sensitization in weld HAZ; excellent post-weld corrosion resistance |
Seamless Structure Integrity | No welded joints; uniform wall thickness; high pressure resistance; low leakage risk for critical chemical lines |
Excellent Processability | Good weldability, formability, bendability; no post-weld heat treatment required in most cases |
Stable High & Low Temp Performance | Reliable from cryogenic to high-temperature chemical process conditions |
Applications
Application Scenario | Details |
Chemical Processing Piping | Acid/alkali/salt solution transportation, reaction pipeline, distillation/absorption systems |
Petrochemical & Refinery | Fluid transfer, heat exchanger tubes, reactor cooling circuits |
Chloride-Containing Systems | Brine, bleach, seawater desalination, chemical wastewater treatment |
Pharmaceutical & Fine Chemical | Sanitary process lines, high-purity medium delivery |
High-Pressure & High-Temp Lines | Boiler tubes, superheater tubes, thermal transfer lines |
Quality Control & Certifications
Item | Content |
Production Process | Cold drawing / hot rolling, full-process inspection |
Test Items | Hydrostatic test, eddy current test, ultrasonic test, tensile test, hardness test, corrosion test, intergranular corrosion test |
Certifications | ISO 9001, CE, TÜV, Mill Test Certificate (MTC) per EN 10204 3.1 |
Service & Supply
Item | Details |
Customization | Custom OD, WT, length, surface finish, end finishing (beveled/plain) |
Packaging | Wooden case, steel frame, waterproof packaging, suitable for sea/air freight |
Lead Time | Standard items in stock; custom orders 7-25 days |
Payment Terms | T/T, L/C, etc. |
Supply Ability | Mass production, long-term supply for chemical plant projects |

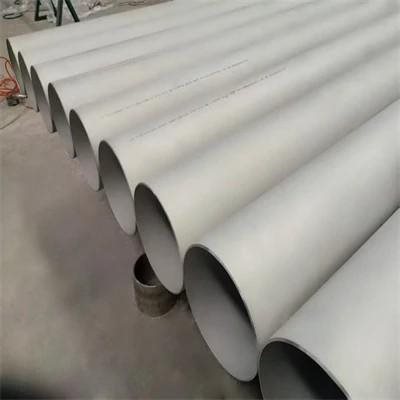

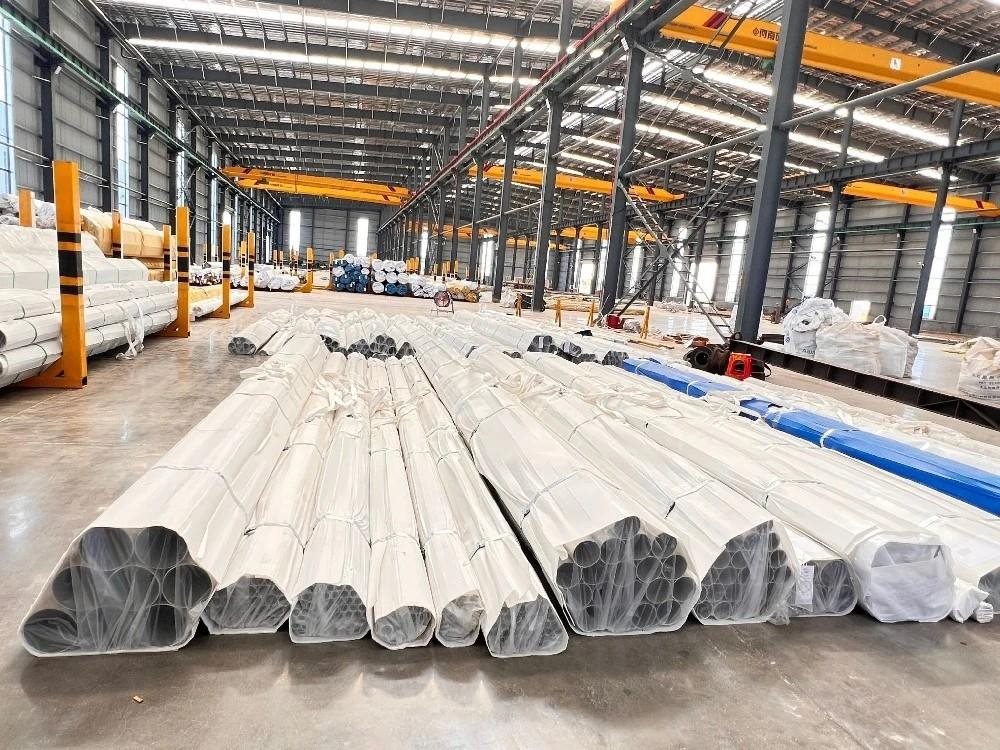

Product Show
