AISI 8K Mirror Polished 201 304 310S 316L 321 321H 430 Stainless Steel Pipe Corrosion Resistant
Products Description
304/304H (UNS S30400/ S30409) is a modification of the most widely utilized "18-8" chromium-nickel austenitic stainless steel. The carbon content is controlled in the range of 0.04-0.10% for increased strength at temperatures above 800°F (427°C). It is an economical and versatile corrosion resistant alloy suitable for a wide range of general purpose applications.
It is common practice for 304H to be dual certified as 304 and 304H. The high carbon chemistry of 304H enables 304 to meet the mechanical properties and grain size requirements of 304H.
304/304H has general corrosion resistance similar to 304/304L. It resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. However, because of its high carbon content, 304/304H is subject to carbide precipitation in the heat affected zone of welds.
304/304H is non-magnetic in the annealed condition but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.
Applications
304/304H Stainless Steel Applications:
Kitchen benches, sinks, troughs, equipment, and appliances
Chemical containers, including for transport
Food processing equipment, particularly in beer brewing, milk processing, and winemaking
Heat exchangers
Architectural trim and molding
Woven or welded screens for mining, quarrying & water filtration
Automotive and aerospace structural use
Nuts, bolts, screws, and other fasteners in the marine environment
Construction material in large buildings
Dyeing industry
Grade | Chemical Composition (%) | |||||||
c | si | Mn | P | s | Ni | Cr | Mo | |
201 | ≤ 0.15 | ≤ 0.75 | 5.5-7.5 | ≤ 0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
301 | ≤ 0.15 | ≤ 1.0 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
304 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | ≤ 0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
316 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316Ti | ≤ 0.08 | ≤ 0.75 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
310S | ≤ 0.08 | ≤ 1.5 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 19-22 | 24-26 |
|
316L | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | ≤ 0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
321 | ≤ 0.08 | ≤ 1.0 | ≤ 2.0 | ≤ 0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
405 | ≤ 0.08 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | ≤ 0.03 | 0.6 | 11.5-14.5 |
|
409 | ≤ 0.08 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | ≤ 0.03 | 0.6 | 11.5-14.5 |
|
409L | ≤ 0.08 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | ≤ 0.03 | 0.6 | 11.5-14.5 |
|
410 | ≤ 0.15 | ≤ 1.0 | ≤ 1.0 | ≤ 0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
430 | ≤ 0.12 | ≤ 0.75 | ≤ 1.0 | ≤ 0.040 | ≤ 0.03 | ≤ 0.60 | 16.0-18.0 | - |
420 | ≤ 0.05 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | ≤ 0.03 | 0.75 | 12-14 | 0.5 |
430 | ≤ 0.12 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | 0.03 | 0.5 | 16-18 | 0.75 |
444 | ≤ 0.025 | ≤ 1.0 | ≤ 1.0 | ≤ 0.04 | 0.03 | 1 | 17.5-19.5 | 1.75-2.5 |
904L | ≤ 0.02 | ≤ 1.0 | ≤ 2.0 | ≤ 0.045 | 0.035 | 23-28 | 19-23 | 4.0-5.0 |
2205 | ≤ 0.03 | ≤ 1.0 | ≤ 2.0 | ≤ 0.03 | 0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤ 0.03 | ≤ 0.8 | ≤ 1.0 | ≤ 0.035 | 0.02 | 6.0-8.0 | 24-26 |
|

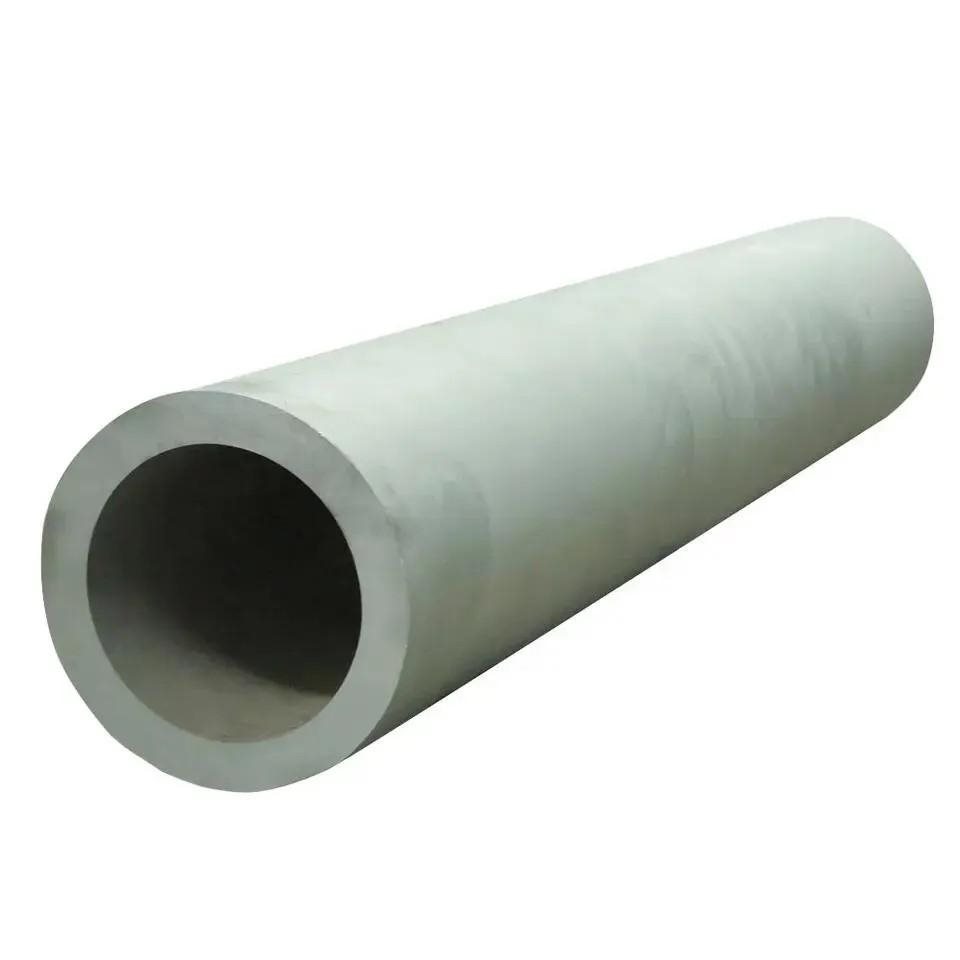

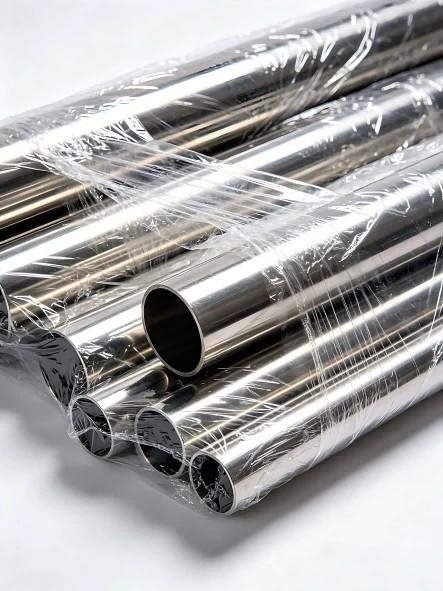

Stainless Steel Seamless Pipe/Stainless Steel Seamless Tube
*Outside Diameter:4.0 mm-1219.0mm
*Wall Thickness:0.5 mm-100.0mm
*Length:up to 24m
*Tolerance:According to the standard
*Technique:Hot rolled/Cold drawn/Forged
*Surface:Pickling, Polished, Grit blast, 180#, 320#, 400#, Bright Anneal,400#, 500#, 600#
*Standard:ASTM A312. ASME SA269, ASTM A269, ASME SA213, ASTM A215, ASTM A511, ASTM A789, ASTM A790, ASTM A 268, DIN 2462.1, DIN 17456, DIN 17458, JIS G3463, JIS G3459, GOST 9941, etc.
*Grade:201, 304, 304L, 316, 316L, 316Ti, 321, 317L, 310S, 347H, 430, 430Ti, 409L, 439, 440C, 446, S32760, 2205, 904L, 630, 631, 253Ma, 254SMo, Incoloy 926, Inconel 625, Monel 400 etc.
*Processing Service:Bending, Welding, Punching, Cutting, etc.
*Pipe End:BE/PE with cap
PLEASE CONTACT THE SALES TEAM FOR THE DETAILED STOCK LIST
